Organic light-emitting diodes (OLEDs) are used as energy-efficient light-emitting units e.g. for displays and lighting. Likewise, organic semiconductors can function as the light-absorbing layer in sensitive photodetector devices. Among the appealing features of organic materials for light-emitting and photodetector devices are their relative ease of processing combined with the possibility of tuning the emission or absorption spectrum via chemical synthesis of molecular building blocks with the desired characteristics. Moreover, their ^*
mechanical properties can enable the realization of mechanically flexible devices. At NanoSYD, we investigate how to realize organic thin-film materials with optimized properties and how these can be implemented into devices with high performance. More specifically, the research topics are:
- Flexible/stretchable OLEDs and electronics
- In-situ and in-operando characterization of organic thin-films and devices
- Hybrid/organic photodetector devices
- Organic nanofiber integration

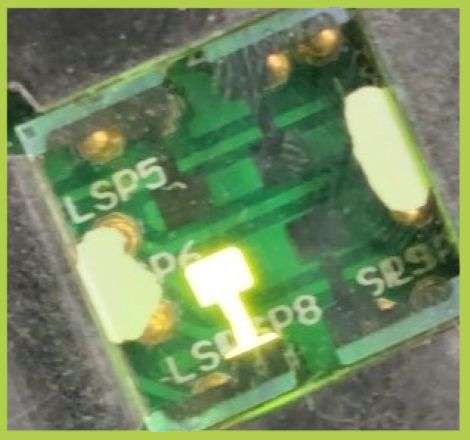

Flexible/stretchable OLEDs and electronics
Bendable OLED devices can be realized by fabricating the OLED layer stack on top of a flexible substrate – typically some type of plastic film or ultrathin glass. The fabrication of a stretchable device is, however, more challenging since most of the materials used in OLED devices can only tolerate very limited stretching before breaking. At NanoSYD, we are working on the development of a new type of stretchable devices towards a stretchable OLED display. This is based on a substrate with specially designed surface corrugations. When the substrate is stretched, these corrugations flatten out but the surface itself only bends. This will enable an OLED device that can be installed on arbitrary 3-dimensional surfaces and objects. This is complemented by device simulations that provide input to experimental investigations.
In-situ and in-operando characterization of organic thin-films and devices
In order to realize organic thin-film devices with optimum performance, it is necessary to control the thin-film microstructure to obtain e.g. a certain molecular alignment and orientation. The material microstructure is formed during the thin-film deposition process and is influenced by a range of parameters related to the substrate surface, the thin-film material as well as the deposition process itself. Moreover, once the thin-film has been formed and the thin-film device has been realized, further structural and chemical changes can occur during device operation potentially degrading the performance of the device.

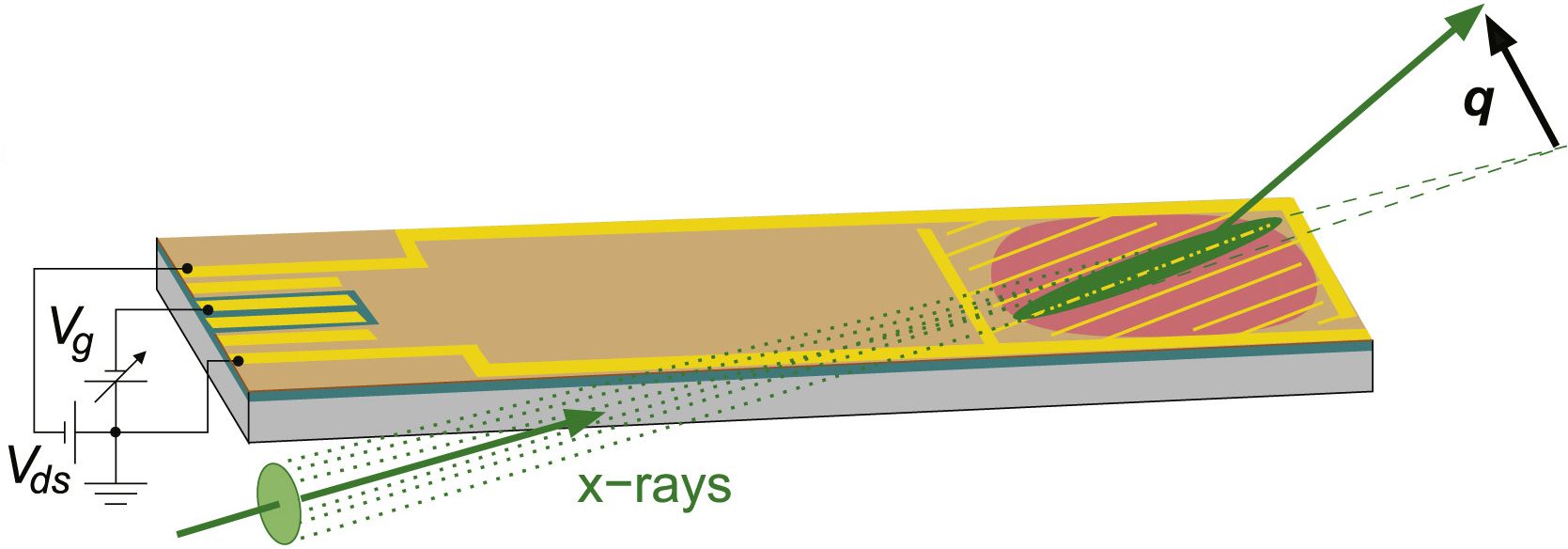

At NanoSYD, we develop and use In-situ techniques to study the thin-film formation process in order to elucidate how the various parameters influence the resulting microstructure and use this knowledge to realize devices with high performance. Moreover, In-operando techniques are developed and used to investigate microscopic changes occurring in the device materials during operation to understand their origin and mitigate their impact. This includes, for example, investigations of how the material microstructure changes in response to mechanical strain and how this affects electrical properties. These techniques include grazing-incidence X-ray diffraction as illustrated in the figure below.
Hybrid/organic photodetector devices
By combining organic semiconductors with other material classes, it is possible to realize hybrid device structures with improved properties. For example, organic semiconductors can exhibit strong optical absorption, which, combined with low price and large area processability, makes these materials useful for photodetector applications. However, their typically more moderate electrical transport properties impede the realization of fast photodetectors. This can be remedied by a hybrid device structure combining the organic semiconductor with e.g. graphene, which has superior electrical transport properties. At NanoSYD, we work on the develop and investigate photodetector devices based on both hybrid material combinations as well as pure organic semiconductor materials. In particular, we investigate how we can control the microscopic structure of the organic semiconductor material during the thin-film deposition process in order to achieve, e.g., maximum optical absorption, and how this translates into improved device performance.
Organic nanofiber device integration

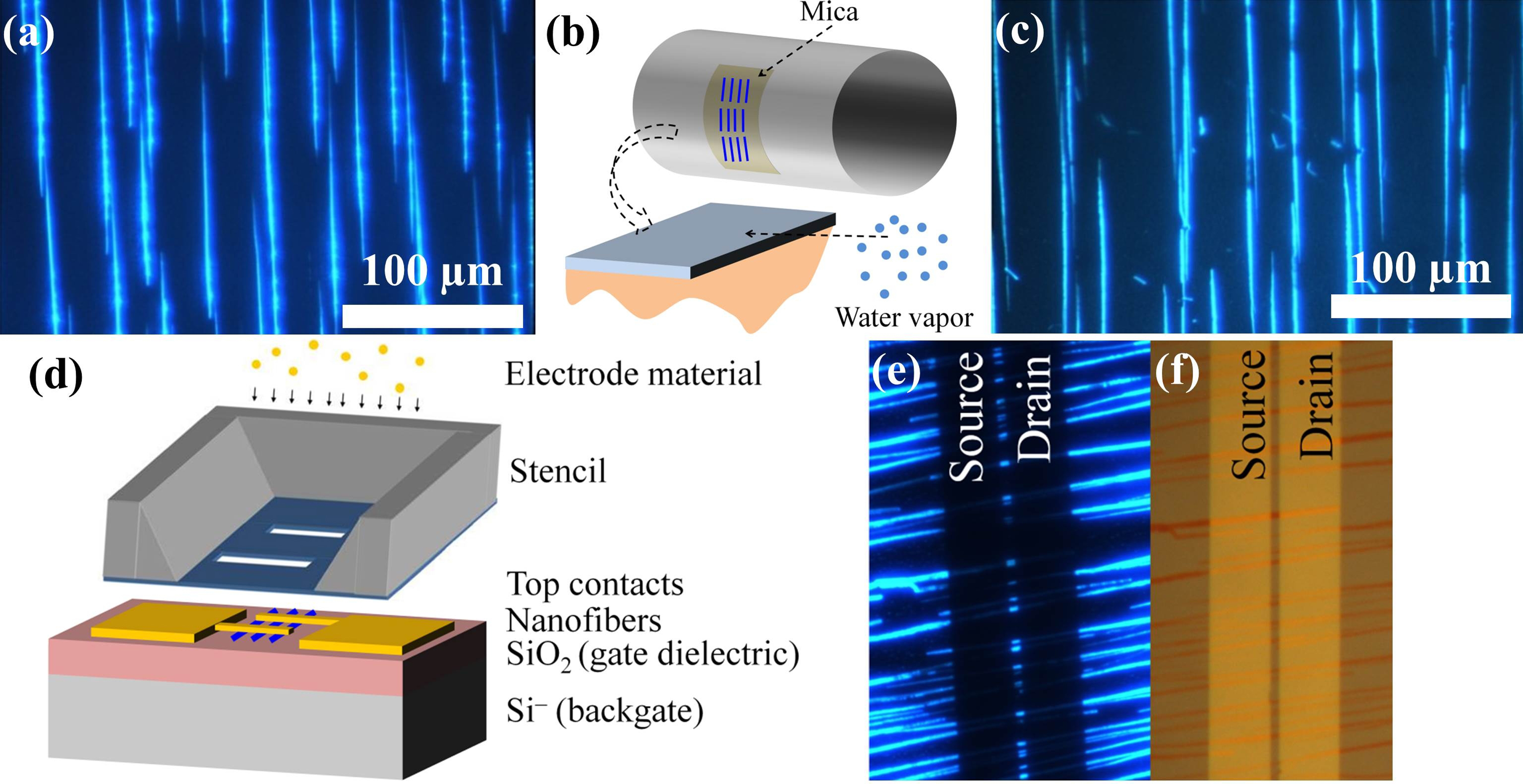

When organic films based on small molecules are used in devices, they are often deposited onto the device substrate by physical vapor deposition techniques. However, crystalline nanofibers can be formed on specific surfaces that are, however, unsuited for further processing, and special transfer techniques are therefore required for implementing such nanostructures in devices. One technique relies on the initial growth of an array of nanofibers on a muscovite mica substrate and subsequent transfer onto a device substrate via roll-printing. The process is illustrated in the figure below, on which panel (a) shows the array of nanofibers prior to transfer, panel (b) shows the principle of the roll-printing method, and panel (c) shows the nanofiber array after transfer. Afterwards, electrical contact can be established by electrode material deposition through a nanostencil as shown in panel (d), while panel (e) and (f) show the contacted nanofibers observed with a fluorescence and white-light microscope, respectively.

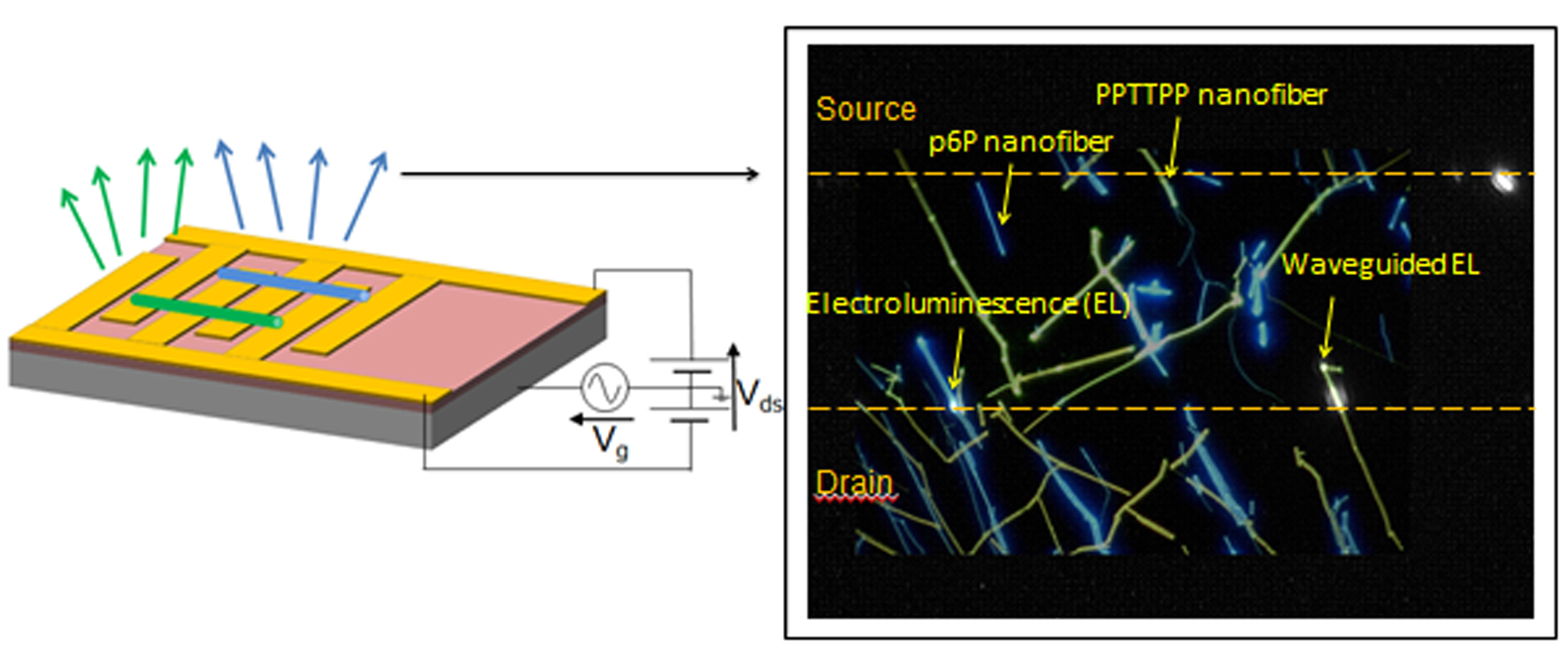

Once the nanofibers are integrated in a transistor configuration, electrical biasing with an AC voltage leads to localized light emission from the metal-organic nanofiber interfaces. This is the results of sequential injection of holes and electrons into the nanofiber and the subsequent electron-hole recombination leading to photon emission. The emission color is determined by the electronic band gap of the nanofiber material, and multicolor light- emission can therefore be achieved by integrating two different types of nanofibers with different fluorescence spectra onto the same transistor platform. The figure below shows emission from two different nanofibers as an overlay between the electrically stimulated light (grayscale) and a fluorescence microscope images from which the actual color can be seen.
