Filament Winding Machine

Filament Winding Machine X-Winder 4-axis



Filament winding is a fabrication technique used for manufacturing open (cylinders) or closed-end structures (pressure vessels or tanks).

This process involves winding filaments under tension over a rotating mandrel.

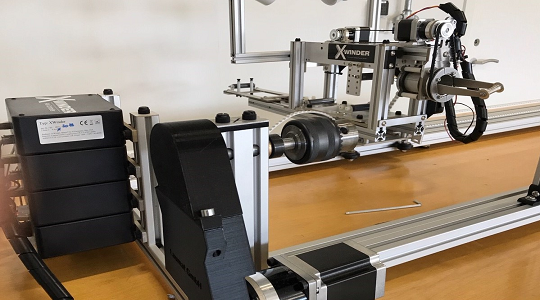

Filament Winding Machine 1



Main specifications:



  • Mandrel width:  up to 8" (200mm) in width
  • Mandrel Max. RPM: 90
  • Carriage Max. Speed: 8in/s (200mm/s)

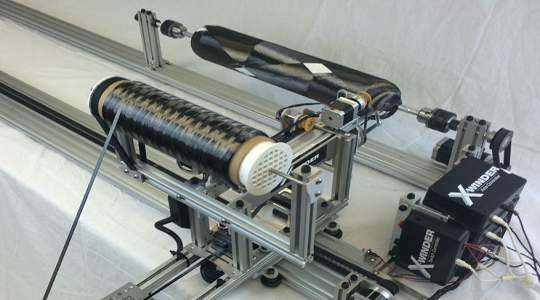

Filament Winding Machine 2





Last Updated 29.01.2021
