CREATE Group announces the completion of the world ́s first 3D Printed bio - reactor featuring at the Centre Pompidou in Paris

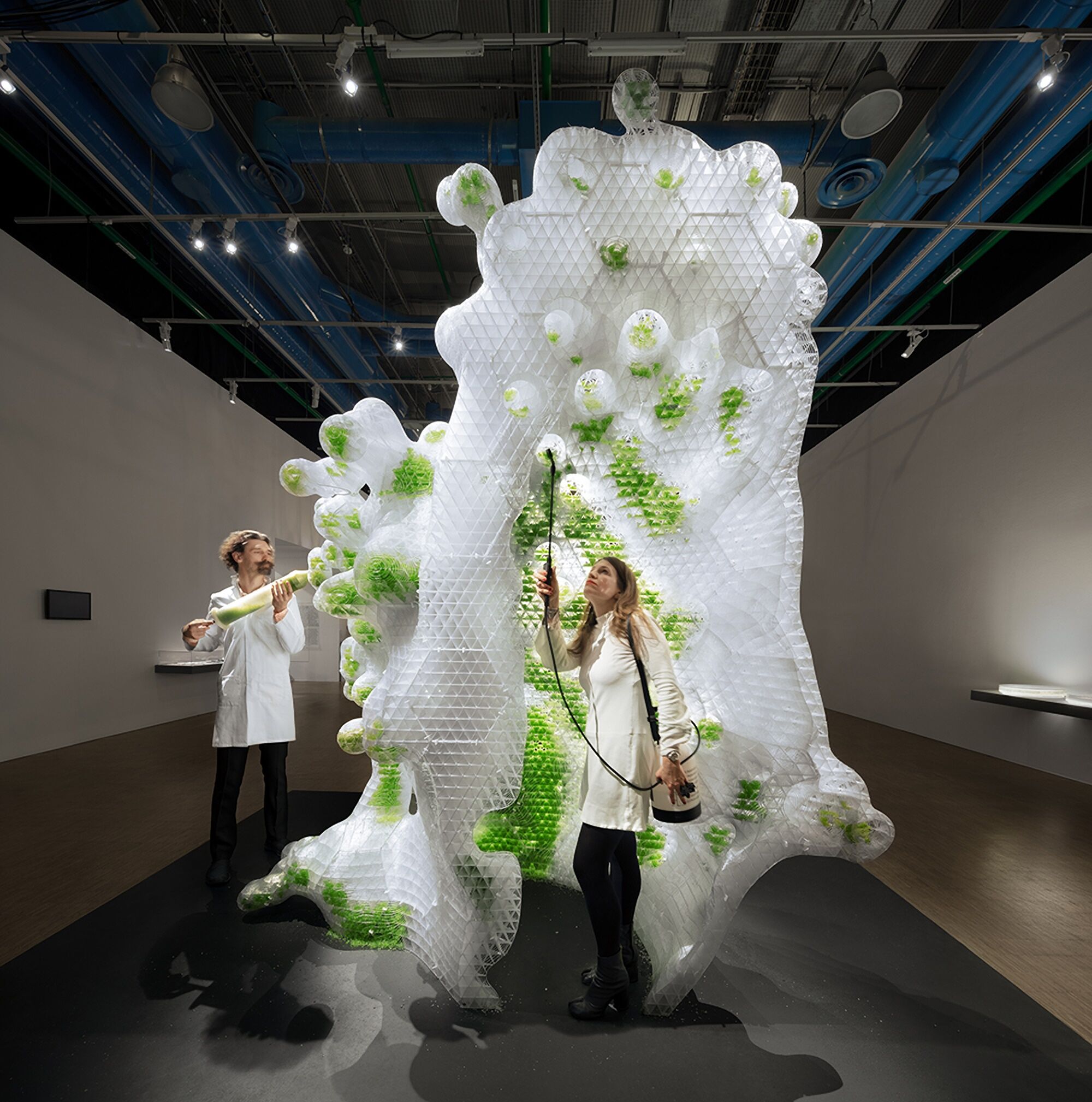

The CREATE Group from the University of Southern Denmark and WASP Hub Denmark announces the completion of HORTUS_XL | Astaxanthin.g, the world´s first 3D Printed bio-reactor, developed in a research partnership with ecoLogicStudio and the Synthetic Landscape Lab at Innsbruck University. The work is featured in the exhibition “Le Fabrique du Vivant” at the Centre Pompidou in Paris from 20 February to 15 April 2019. The show, part of Mutations-Créations series and curated by Marie-Ange Brayer with Olivier Zeitoun, retraces the archaeology of the living and of artificial life. The installation is intended as speculative 1:1 scale prototype of living architecture, a new generation of thick biophilic architectural skin receptive to urban life. The structure is designed algorithmically and produced by means of large-scale high-resolution 3D printing.

About the Project

In H.O.R.T.U.S. XL Astaxanthin.g, a digital algorithm simulates the growth of a substratum inspired by coral morphology. This is physically deposited by 3D printing machines in layers of 400 microns, supported by triangular units of 46 mm and divided into hexagonal blocks of 18.5 cm. Photosynthetic Cyanobacteria are inoculated on a biogel medium into the individual triangular cells, or bio-pixel, forming the units of biological intelligence of the system. Their metabolisms, powered by photosynthesis, convert radiation into actual oxygen and biomass. The density value of each bio-pixel is digitally computed in order to optimally arrange the photosynthetic organisms along iso-surfaces of increased incoming radiation. Among the oldest organisms on Earth, cyanobacteria's unique biological intelligence is gathered as part of a new form of bio-digital architecture.

The visitors of the exhibition will move freely around and inside the installation, observing the bio-digital landscape made of protuberant 3D printed geometries and engaging in an exchange with the micro-algae. The micro-organisms will absorb the carbon dioxide produced by human breathing and transform it into oxygen in a process that also creates biomass, useful for the production of bioplastic material and energy.

3D Printed System Development and Production

The CREATE Group and WASP Hub Denmark from SDU have contributed to the development of the 3D printed system and the digital fabrication of the structure: “In this jointed research, biological and digital strategies are fused together to conceive a novel model of architecture, able to contribute positively to the urban environment”, explains Roberto Naboni, Assistant Professor at the University of Southern Denmark (SDU). The experimental structure is composed of 185 different construction components which are entirely produced by Delta WASP 3D Printers for a total of 1780 hours and 271 kilos in weight, in between the CREATE Lab/WASP Hub Denmark, and the Synthetic Landscape Lab at Innsbruck University.

The bio-reactor is printed in PETG thermoplastic and characterized by complex morphologies and high level of details. Each component has very differentiated geometry, which has required an individualized study to optimize the printing process for precision and speed. The overall printed structure performs as a symbiotic substratum for the internal proliferation of micro-algae on a biogel suspension and therefore is characterized by an external porous shell which favours the air exchange with the biological compound, high transparency to gain the needed light to run photosynthetic processes, and high chemical resistance. The construction system is based on reversible connections among the components which allow the easy relocation of the prototype.

In spring 2019, H.O.R.T.U.S. XL Astaxanthin.g will be exhibited at the MAK – Museum of Applied Arts in
Vienna.

About the CREATE Group / WASP Hub Denmark

CREATE is the group for Computational Research in Emergent Architectural Technology, part of the Unit of Civil and Architectural Engineering (CAE) at the University of Southern Denmark. The group, founded and coordinated by Assistant Professor Roberto Naboni, explores novel architectural processes and solutions at the intersection with the fields of computer science, advanced manufacturing and emergent material technologies. The group also coordinates CAE’s activities in the field of Industry 4.0 and VR/AR/MR. In its physical infrastructure, the CREATE Lab are studied future scenarios of constructions, from disruptive concepts to applied research, bringing together design and making through technology. CREATE Lab is the WASP Hub for Denmark and part of an international network of digital fabrication.

PROJECT CREDITS

Design: ecoLogicStudio (Claudia Pasquero, Marco Poletto, Konstantinos Alexopoulos, Matteo Baldissarra, Michael Brewster)

Research partner for biological as well as 3D Printed systems and production development: Synthetic Landscape Lab, IOUD, Innsbruck University (Prof. Claudia Pasquero, Maria Kuptsova, Terezia Greskova, Emiliano Rando, Jens Burkart, Niko Jabadari, Simon Posch); Photosynthetica consortium (www.photosynthetica.co.uk)

Research partner for 3D Printed systems and production development: CREATE Group / WASP Hub Denmark - University of Southern Denmark (SDU) (Prof. Roberto Naboni, Furio Magaraggia)

Engineering: YIP structural engineering, Manja Van De Worp

Microalgal Medium Material Support: Ecoduna AG

3D printing Material Support: Extrudr
